nominal diameternps6″~48″(dn150~dn1200)
nominal pressureansi cl150~cl2500 (pn1.6~pn42.0mpa)
medium temperature-46~150℃
connection methodflange type
body materialwcb、cf8、cf8m、other materials requested by the user
inner material304、316、1cr17ni2、other materials required by the user
sealing materialnbr, fkm, high performance sealing ring
flow characteristicslinear (l), equal percentage (%), special requirements
leakagecomplies with fci-70-2, iec60534-4 iv, v, vi
adjustable range100:1
linear≤±1(%)
backlash≤±1(%)
drive modeelectric, pneumatic or hydraulic

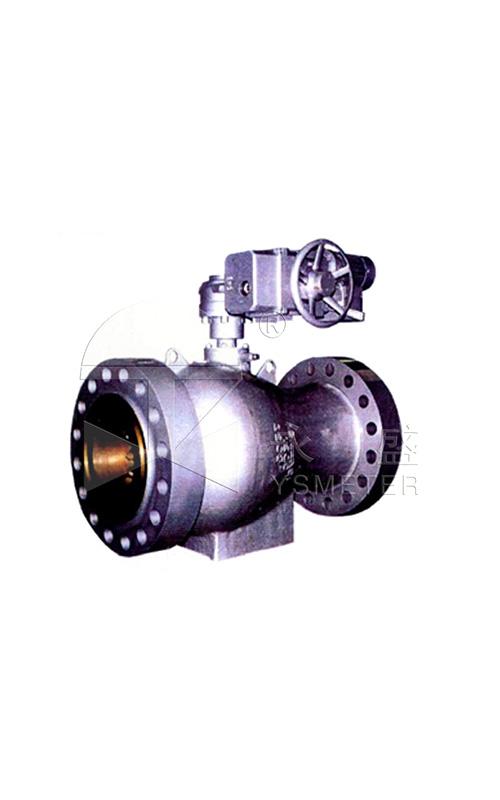

afcv80 series axial flow control valve is a new structure, high performance control valve. the axial flow control valve is different from the conventional straight stroke control valve, which changes the overall flow structure of the conventional straight stroke control valve and changes the phenomenon that the throttle valve and the fluid flow direction of the conventional straight stroke regulating valve are inconsistent, resulting in less energy loss of the medium. , the circulation capacity is 20%~50% larger than the conventional linear stroke control valve. it has the characteristics of low flow resistance coefficient, sturdiness and durability, low maintenance, high performance, etc. it is widely used in natural gas, crude oil, refined oil and other non-corrosive gases and liquid regulation control.
